Most individuals consider the waterfront as the sting of town. A group of MIT researchers sees it as a dynamic, Lego-like building web site.
Their new system, known as “FloatForm,” is a swarm of small sq. robotic boats that assemble themselves into bigger buildings on the water, break aside, and reassemble into one thing new, all with minimal human course.

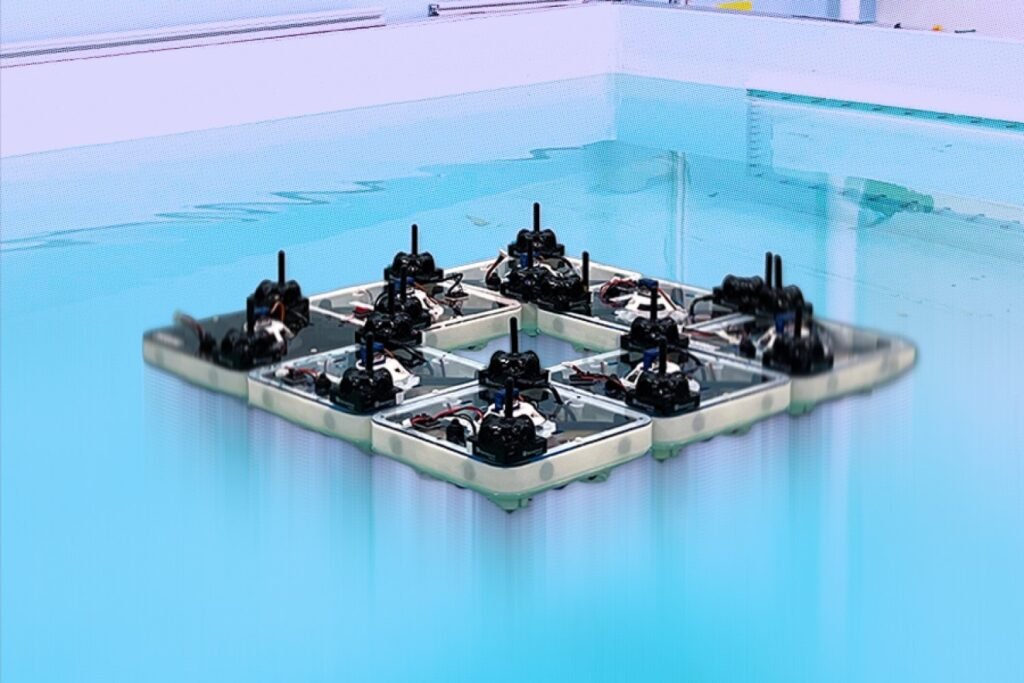

Every robotic, in regards to the measurement of a dinner plate at 21 centimeters sq., is a self-contained vessel with its personal thrusters, sensors, and magnetic latches. Collectively, they trace at a future by which floating infrastructure may change into extra adaptive: a brief platform after an emergency, a market on a canal, or a stage that seems for a competition and dissolves when the gang goes dwelling.
“Our FloatForm initiatives envisions a future the place the waterfront turns into a programmable extension of town, the place autonomous boats can self-organize into bridges, platforms, and different helpful buildings on demand,” says Daniela Rus, the Panasonic Professor of Electrical Engineering and Pc Science at MIT and director of MIT’s Pc Science and Synthetic Intelligence Laboratory (CSAIL). “This type of distributed robotics opens new potentialities for mobility, emergency response, public area, and infrastructure on water.”
“With FloatForm, we’re primarily turning static water surfaces into dynamic, programmable areas,” says Wei Wang, lead writer of a brand new paper on the undertaking and a former MIT analysis scientist who now leads the Marine Robotics Lab on the College of Wisconsin at Madison. “Think about an city setting the place public area isn’t fastened, however can autonomously develop, contract, or reconfigure on demand.”
“We see it as forming infrastructure on the water, utilizing a modular system to create one bigger system,” says Alejandro Gonzalez-Garcia, a former researcher with MIT CSAIL and the Senseable Metropolis Lab. “If there’s an emergency, you would type a brand new bridge to alleviate visitors within the metropolis. Or you would create floating markets and floating phases. If you would like a extra livable metropolis, you wish to use the water, too.”
The open-access work, revealed at this time in Nature Communications, comes from the labs of Rus and Carlo Ratti, professor of apply of city applied sciences and planning at MIT and director of the Senseable Metropolis Lab, and grows out of Roboat, their joint undertaking with the Amsterdam Institute for Superior Metropolitan Options that put full-size autonomous vessels on Amsterdam’s canals. These canals as soon as carried town’s items; at this time, they largely carry vacationers.
“We explored whether or not the canals could possibly be used for waste assortment, or for transport, to dump a number of the stress on the roads again onto the water,” says Niklas Hagemann, an MIT graduate pupil in structure, CSAIL affiliate, and former Senseable Metropolis Lab researcher who has labored on the undertaking since its early phases. “City areas are getting denser, so may you develop public area onto water that’s presently underutilized?”
FloatForm shrinks that imaginative and prescient right down to tabletop scale to reply a tougher query: How do you get dozens, and finally hundreds, of floating robots to arrange themselves?
Classes from the ant raft
The group discovered its reply in biology. Hearth ants famously survive floods by linking their our bodies into dwelling rafts, with no chief choreographing the meeting. Every ant follows easy native guidelines, and a resilient construction emerges.
“Every ant is an impartial agent,” says Gonzalez-Garcia. “We needed every robotic to have its personal capabilities, the identical means ant colonies type a raft.”
Most current self-assembling robotic methods, on water and elsewhere, depend on a central pc dictating each transfer. That strategy is weak to single factors of failure and scales poorly: The planning math balloons as robots are added, and the swarm should assemble sequentially, with most robots idling whereas they wait their flip. FloatForm flips the stability. A light-weight central planner steps in solely sparingly, assigning every robotic a remaining place to excellent the lattice, a stage of geometric precision that purely distributed strategies battle to ensure. All the pieces else, together with navigating towards the goal form, avoiding collisions, and adapting to disturbances, runs on the robots themselves, which coordinate by exchanging positions with their quick neighbors. The entire swarm strikes without delay.
That parallelism is what units the work aside. The planning complexity of FloatForms strategy relies upon solely on a robotic’s native neighbors, not the full measurement of the swarm. “What we’re making an attempt to do is to have minimal central intervention, and have all of them transfer collectively on the similar time,” says Gonzalez-Garcia.
In experiments at MIT, a fleet of eight robots repeatedly gathered from random positions right into a goal form, latched right into a inflexible construction, broke aside on command, reassembled into a brand new configuration, after which drove throughout the pool as a single vessel, with every run taking 4 to eight minutes. In that remaining mode, known as collective transport, a planner charts a trajectory for the entire construction and every robotic computes its personal contribution. “Each robotic turns into an actuator,” Gonzalez-Garcia explains. Simulations confirmed the framework scaling easily to swarms of 64.
“The fantastic thing about this largely decentralized strategy is that the computation doesn’t get slowed down because the swarm grows,” says Wang. “Whether or not you’re working with eight boats or 80, all the fleet coordinates and strikes concurrently. As a result of the general meeting time doesn’t considerably enhance in precept, the system stays extremely scalable.”
There is a bodily payoff to sticking collectively, too. “Our boats change into extra steady by becoming a member of collectively, just like the ant raft, when you’ve got waves or currents,” Hagemann says.
An origami handshake
The robots join by a latching mechanism hidden completely inside every hull. A single servo motor on the heart drives an origami-inspired auxetic construction, a geometry that contracts uniformly in all instructions without delay, pulling everlasting magnets on all 4 sides inward to launch, or pushing them outward to seize a neighbor throughout gaps of 10 to fifteen centimeters. The magnets are organized with alternating polarities, so the boats reliably click on into clear sq. lattices.
The elegant half is what the mechanism doesn’t do: devour (a lot) energy. A 3D-printed gearbox holds the latch in both state with the motor switched off. “It makes use of power to latch and de-latch, however in between these states, it doesn’t use any power,” says Hagemann. For infrastructure which may maintain a configuration for hours, that issues. “As a result of the robots are so small, you possibly can solely have a battery so huge,” provides Gonzalez-Garcia. “In the event that they use much less power on latching, they’ll use extra on computation, or on really shifting.”
Getting there took some humbling engineering. 4 miniature thrusters organized in an “X” give every robotic omnidirectional movement, together with handing over place, however they pack massive forces relative to the robots’ tiny inertia, which made early prototypes twitchy and liable to aggressive spins at low speeds. The group added stabilizing fins to extend hydrodynamic drag and tuned the controllers to remain strong throughout robots that, at this scale, are by no means fairly an identical. The magnets posed their very own downside: They held on so effectively that de-latching typically required the robots to twist themselves free.
From the tank to the canal
Throughout 10 trials, the system accomplished its missions with out human intervention 90 p.c of the time with 4 robots and 70 p.c with eight. When issues did go incorrect, the structure confirmed its resilience: A robotic that briefly misplaced its bearings may rejoin the construction by itself, with out bringing the entire swarm to a halt, and robots caught in formation deadlocks realized to shake themselves free and retry.
Shifting from a managed indoor tank to an actual canal or harbor will take greater than confidence. “There’s at all times a relationship between the scale of a ship and the magnitude of the disturbance it may possibly deal with,” says Gonzalez-Garcia. “These boats are very small, so in very disturbed water, they can’t work.” Scaling up will imply reinforcing the latches, doubtlessly with mechanical interlocking just like the full-size Roboat used, and buying and selling the lab’s ultrasonic indoor positioning for GPS or vision-based sensing. Helpfully, the coordination algorithm was designed to be sensor-agnostic: swap the sensors, maintain the logic.
The group envisions purposes effectively past metropolis canals, from forming short-term platforms for offshore inspection and upkeep to adaptive sensor networks for learning migratory species to reconfigurable docking stations for emergency response in hard-to-reach areas. There’s additionally potential for offshore and distant operations, from short-term building platforms to environmental monitoring and scientific expeditions.
And the geography is vast open. “Venice, the Netherlands, Belgium, the fjords and lakes of Norway, actually any metropolis with a river can benefit from this,” says Gonzalez-Garcia. “The undertaking makes use of areas the place water is already necessary, but it surely additionally raises the query: The place else can water be used for one thing extra?”
“That is an thrilling step ahead in realizing distributed collective behaviors on water,” says College of Michigan Assistant Professor Steven Ceron, who wasn’t concerned within the analysis. “Meeting, self-reconfiguration, and collective movement are troublesome sufficient in dry environments, however attaining these behaviors in a predominantly distributed style on water represents a critical further problem, and this group has credibly overcome it. By shifting the computational burden onto the robots themselves, they’ve constructed a extra resilient system that within the close to future may allow robotic collectives like this to be deployed in open-water environments for search operations, environmental monitoring, and reconfigurable marine infrastructure.”
Gonzalez-Garcia, Hagemann, and Wang wrote the paper with senior authors Ratti, who can also be a professor at Politecnico di Milano, and Rus. Gonzalez-Garcia is moreover affiliated with the MECO Analysis Workforce at KU Leuven. The analysis was supported by a grant from the Amsterdam Institute for Superior Metropolitan Options, with further assist from the College of Wisconsin at Madison. The group thanks MIT Sea Grant and Professor Michael Triantafyllou for offering the check tank.
