On this article, you’ll discover ways to apply a structured determination tree to decide on the best agentic design sample for any AI system you’re constructing.
Subjects we are going to cowl embrace:
- Why sample choice is a important design determination, and what assumptions underlie every main agentic design sample.
- A five-question determination tree that maps concrete job properties to essentially the most applicable beginning sample.
- Frequent failure indicators for every sample and the focused fixes that handle them.

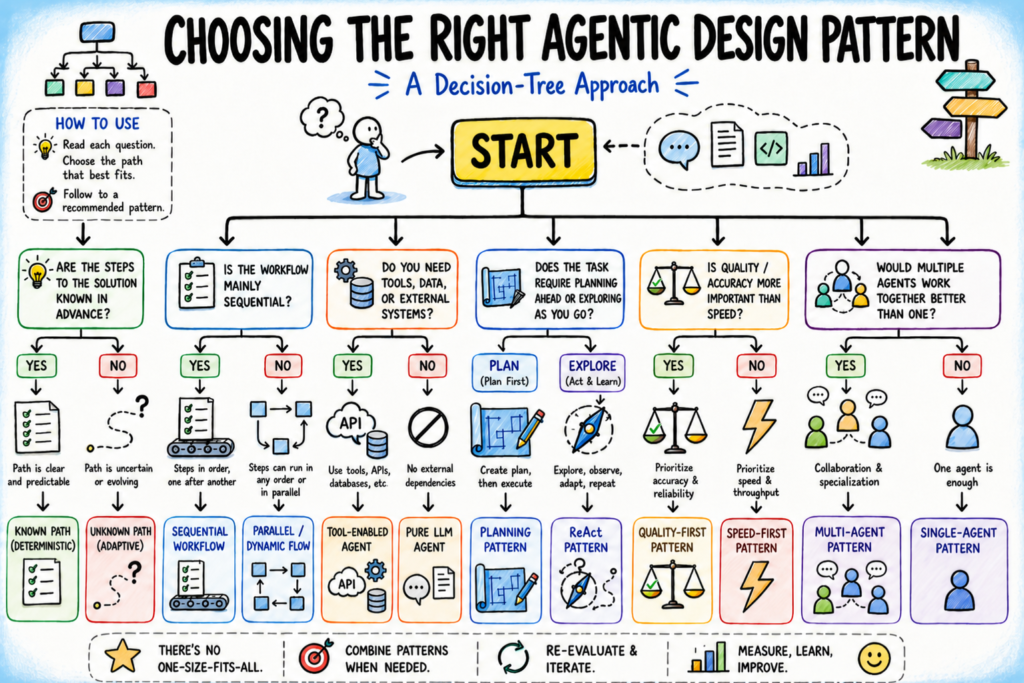

Selecting the Proper Agentic Design Sample: A Determination Tree Strategy (click on to enlarge)
Introduction
Most agentic structure errors begin with a easy misinterpret of the issue. Builders typically decide a sample based mostly on what appears to be like spectacular or acquainted, not what the duty really wants. A multi-agent system from a chat can appear to be the “proper” reply, in order that they spend weeks constructing orchestration for one thing a single well-prompted agent with a few instruments may deal with in a day. Or they go the opposite path, hold issues too easy, and solely uncover in manufacturing that the system can’t adapt or scale, forcing a redesign beneath strain.
Sample choice is the place the actual design work occurs. The agentic design patterns themselves are effectively documented. What’s much less documented is the determination logic for selecting between them. That logic is what this text is about.
The strategy here’s a determination tree: a sequence of questions on your job, your constraints, and your acceptable trade-offs that leads you to the best beginning sample. The tree doesn’t produce a remaining reply; agent architectures evolve as suggestions accumulates. But it surely offers you a principled start line, and it makes the reasoning behind your alternative clear sufficient to revisit when issues change.
Why Is Agentic Design Sample Choice Essential?
Earlier than working via the choice tree, it is very important clearly outline what’s at stake when choosing a design sample.
Every agentic design sample relies on particular assumptions in regards to the construction and calls for of a job. Listed here are a few of them:
- ReAct sample treats the following finest motion as not totally knowable upfront, and depends on combining reasoning with software use at every step to enhance choices.
- Planning relies on the concept the most important construction of the duty could be recognized upfront, and that defining an execution roadmap improves downstream reliability.
- Reflection sample is grounded within the expectation that first-pass outputs are sometimes incomplete or flawed, and that iterative self-critique and refinement enhance remaining high quality sufficient to justify the added value.
- Multi-agent approaches function on the assumption that the duty advantages from decomposition into specialised roles, the place parallel or modular execution outweighs the overhead of coordination.
When these assumptions match the duty, the sample provides actual worth. After they don’t, it provides overhead with out bettering outcomes. As an example, planning can turn into inflexible when job construction solely emerges throughout execution, reflection can waste assets on easy queries, and multi-agent setups can add pointless complexity for issues a single agent can clear up.
The choice tree under helps information deliberate sample choice. Every department displays a key job property that determines which assumptions really maintain.
Additional studying on agentic design patterns: The Roadmap to Mastering Agentic AI Design Patterns
A Determination Tree for Selecting the Proper Agentic Design Sample
The tree has 5 branching questions, each narrowing the sample house based mostly on a concrete property of the duty at hand. Work via them so as.
Query 1: Is the Answer Path Identified in Advance?
This query separates mounted workflows from adaptive ones.
A identified answer path means the complete step-by-step course of could be outlined earlier than execution. For instance:
- Bill processing: extract fields → validate → retailer → verify
- Worker onboarding: create accounts → ship welcome electronic mail → assign supervisor → schedule orientation
These are predictable workflows the place the identical steps apply each time.
An unknown answer path means every step is determined by earlier outputs. Analysis duties that observe new proof, buyer help that branches based mostly on person enter, or debugging that shifts hypotheses based mostly on earlier outcomes can’t be totally deliberate upfront.
If the trail is thought → go to Query 2a. If unknown → go to Query 2b.
Query 2a: Is This a Mounted Workflow?
For identified, steady paths, use a sequential workflow sample. The agent follows specific steps so as, passing outputs from one stage to the following till completion.
Sequential workflow sample
The important thing design alternative is the place reasoning is required. Use the mannequin just for duties like interpretation or era, whereas deterministic code handles every little thing else. This retains techniques quick, predictable, and cost-efficient.
The principle failure mode is over-engineering — including ReAct-style reasoning the place each step is already outlined. If the method is totally deterministic, the agent ought to execute, not determine.
If the workflow begins breaking on edge circumstances or requires new steps not initially outlined, it could be time to maneuver to Query 2b.
Query 2b: Does the Process Require Software Entry or Exterior Data?
For duties with unknown answer paths, the following query is whether or not the agent must work together with the exterior world — question databases, name APIs, retrieve paperwork, run code — or whether or not it may well function purely on data already in its context.
Software use sample
The reply is nearly at all times sure: software use is required. An agent that may solely cause over its coaching knowledge and the dialog context handles a slender slice of real-world duties. The second the duty entails present data, exterior state, or system-level actions, software use turns into the inspiration every little thing else sits on.
Efficient software design with clear contracts, inputs, and outputs issues, however for sample choice the principle level is less complicated: instruments add functionality with out altering the reasoning sample. A ReAct agent with instruments remains to be ReAct, and a planning agent with instruments remains to be planning. Software use sits beneath the reasoning layer, not alongside it.
Transfer ahead to Query 3 with software use assumed except the duty is genuinely self-contained.
Query 3: Is the Process Construction Articulable Earlier than Execution Begins?
This query separates Planning from ReAct and is commonly skipped in follow, with builders defaulting to ReAct. ReAct works by iteratively alternating between reasoning steps and gear actions, utilizing the outcomes of every step to determine what to do subsequent till a stopping situation is met.
ReAct Sample
A job is structurally articulable when it may be damaged into ordered subtasks with clear dependencies earlier than execution. The total particulars could also be unknown, however the principle levels and sequence are clear. For instance, constructing a function (design → implement → check), provisioning techniques so as, or producing a analysis report (collect → synthesize → write) all have an outlined construction.
The planning sample works effectively when this construction exists, as a result of it exposes dependencies early and avoids mid-execution surprises. With out it, brokers can solely uncover errors after spending time and compute on the flawed path.
Planning Sample
However planning additionally has prices: an additional upfront step, reliance on the standard of the preliminary plan, and lowered flexibility when real-world situations differ from expectations. When construction solely turns into clear via interplay and suggestions, planning could be deceptive.
If the duty is structurally clear → use Planning with ReAct inside steps. If construction emerges throughout execution → use ReAct and transfer to Query 4.
Query 4: Does Output High quality Matter Extra Than Response Pace?
This query introduces the reflection sample — the generate–critique–refine cycle — and determines whether or not it needs to be added on high of the chosen sample.
Reflection Sample
Reflection is beneficial when two situations are met:
- First, there are clear high quality standards the output could be checked towards — akin to a legitimate SQL question, a well-reasoned argument, or a contract with lacking components.
- Second, the value of errors is excessive sufficient to justify an additional cross, akin to deployed code or client-facing paperwork.
It isn’t helpful when these situations don’t maintain. With out clear analysis standards, the critic produces obscure or deceptive suggestions. And when velocity is necessary — as in dwell techniques or high-throughput duties — the additional latency is a downside.
A key element is critic independence. If the critic mirrors the generator too intently, it tends to agree reasonably than consider. Sturdy reflection typically requires a separate framing or perhaps a completely different mannequin.
If high quality is necessary and standards are clear → add Reflection. If velocity issues extra or analysis is unclear → skip it and transfer to Query 5.
Query 5: Does the Process Have a Specialization or Scale Drawback That One Agent Can’t Deal with?
That is the place you determine whether or not you want a multi-agent structure, and it ought to solely be thought-about after the earlier steps have been evaluated fastidiously.
Multi-Agent Sample
Multi-agent techniques are helpful when duties are too massive for a single context window, require completely different sorts of experience throughout levels, or profit from parallel execution to scale back general time. They will enhance efficiency by splitting work throughout specialised brokers, however additionally they add coordination overhead, shared state complexity, and extra failure factors.
The specialization concern seems when completely different components of the duty want clearly completely different reasoning types — akin to authorized assessment vs. monetary modeling, or coding vs. safety auditing. The size concern seems when work can not match into one agent’s context or is being unnecessarily serialized.
If neither applies, a single sturdy agent is normally sufficient; the overhead of a number of brokers outweighs the profit. The set off for multi-agent use needs to be a transparent bottleneck that specialization or scale really solves, not architectural choice.
When wanted, key design selections embrace job possession, routing logic, and topology, which could be sequential, parallel, or debate-style coordination.
Placing all of it collectively, we’ve the next determination tree:
Determination Tree for Selecting the Proper Agentic Design Sample
Determination Tree → Agentic Design Sample Mapping
Working via all 5 questions produces one in all 4 widespread vacation spot patterns. In follow, most manufacturing brokers find yourself someplace between these, with components of a number of patterns layered collectively. These are beginning factors, not remaining states.
| Ensuing Agent Sample | When to Use | Why It Works |
|---|---|---|
| Single Agent + Instruments + ReAct | Unknown answer path, no clear upfront construction, no strict high quality constraints, no specialization wants. | Greatest default for real-world duties. Versatile exploration through software use and step-by-step reasoning. Cheap failure detection and iterative enchancment. |
| Planning Agent + ReAct Execution | Process construction is knowable upfront, however every step requires adaptive reasoning throughout execution. | Planner defines levels and dependencies; ReAct handles native uncertainty. Reduces mid-execution failure from hidden complexity. |
| Single Agent + Reflection | Excessive-quality output required and latency is appropriate. | Generate → Critique → Refine loop improves correctness. Works finest when analysis standards are specific and verifiable. |
| Multi-Agent Specialist System | Sturdy specialization wants or scale exceeds single-agent capability. | Coordinator routes duties to specialists. Allows parallelism and area experience, however provides coordination overhead and system complexity. |
Frequent Agentic Design Sample Pitfalls (and Fixes)
Selecting a beginning sample from the choice tree is the first step. Understanding the way to diagnose when the chosen sample isn’t working is determined by studying a number of clear indicators.
| Sign | What It Means | Instructed Repair |
|---|---|---|
| ReAct looping excessively | Too many steps or revisiting resolved questions; agent is unsure about progress or construction. | Process probably wants planning, higher software construction, or a clearer stopping situation. |
| Planning agent abandoning plan | Plan is created however not adopted; execution retains diverging from it. | Process is much less structured than assumed; swap to light-weight planning + ReAct. |
| Reflection not bettering output | Critique cycles don’t meaningfully enhance output high quality. | Analysis standards are unclear or the critic is simply too aligned with the generator; refine the critique setup. |
| Multi-agent routing failures | Fallacious specialist choice or outputs don’t mix effectively downstream. | Routing logic concern; use deterministic guidelines for predictable circumstances as an alternative of LLM routing. |
Subsequent Steps
The choice tree makes agentic sample choice specific as an alternative of instinctive. It forces the important thing questions — answer path, construction, high quality wants, and specialization — earlier than any code is written, when errors are least expensive to repair.
Most points come from over-engineering too early or staying too easy too lengthy. The patterns themselves are steady; the problem is selecting accurately. Let the choice tree information the start line, and let follow and outcomes information the evolution.
For top-stakes functions, incorporate human-in-the-loop checkpoints the place reliability, security, or judgment calls matter most. Listed here are a number of helpful assets for additional studying:
