- Apple constructed a versatile graphite pipe into the iPhone Duo hinge to dissipate extra warmth between the 2 chassis halves when folded.
- Mixed with an unstacked A20 Professional SoC and vapor chamber, the energetic thermal hinge helps preserve peak efficiency for longer beneath heavy masses.
- Android foldables have used graphite sheets as a part of the show stack or on the chassis on both aspect of the backbone, however haven’t usually used the backbone itself for cooling.

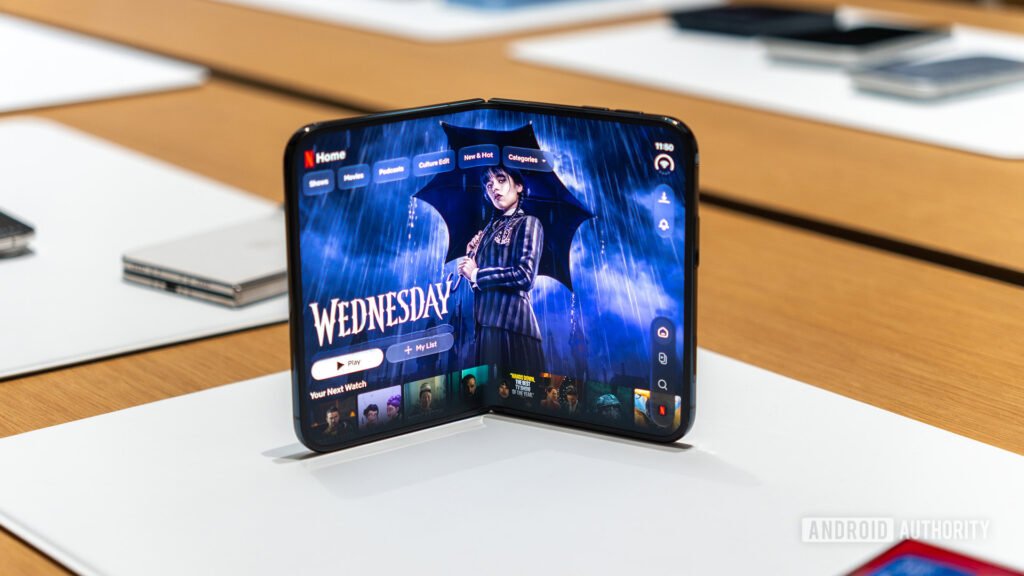

Foldables have spent years balancing thinner profiles with flagship-grade SoCs and the ensuing thermal dilemma. When unfolded, you will have a big floor space that’s nice for thermal dissipation, however when folded, you create a thermal sandwich that all of the sudden has to work with solely half the floor space. Apple seems to have solved this on its first foldable, the iPhone Duo, by incorporating the hinge into the telephone’s cooling construction.
In line with a PCMag interview with Apple’s thermal and silicon engineering groups, the iPhone Duo’s fold itself was one of many system’s hardest thermal roadblocks. Whereas book-style foldables are normally razor-thin when open, closing them stacks the chassis, successfully doubling the thickness whereas decreasing the floor space out there for warmth dissipation. If you happen to entice a flagship processor in a compact sandwich, that’s a recipe for some aggressive thermal throttling.
